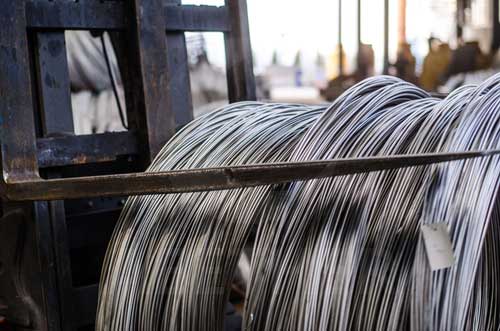

Overview
As a Chinese leading nickel alloy materials supplier, AEETHER produces and manufactures cost-effective nickel alloy wire rod. Nickel alloy wire rod is a coiled nickel alloy rod, which is continuously hot rolled from a nickel alloy ingot. The nickel alloy wire rod produced by AEETHER has outstanding corrosion resistance and high temperature resistance, excellent roundness and white surface. Nickel alloy wire rod also has good flexibility and workability, so it is also the raw material for our various nickel alloy wires. We produce high-quality nickel alloy wire rod in strict accordance with ISO 9001 standards.
AEETHER supplies different nickel alloy grades: Monel(400, 401, K-500, etc), Inconel(600, 601, 625, 718, etc), Incoloy(800, 825, A-286, etc) and Hastelloy(B-2, C-22, C-276, etc). The diameter of our nickel alloy wire rod ranges from 6mm to 20mm. Customized size is also available.
Our products have higher quality and lower price. Our sales are more professional and responsible. Please don't hesitate to contact us!
Specifications
- • Diameter: 6mm - 20mm
- • Delivery State: Hot Rolled, Cold Drawn
- • Weight: 100kg per roll
Standards
- ASTM B160, ASTM B164, ASTM B166
- ASTM B335
- ASTM B408, ASTM B425, ASTM B446, ASTM B472, ASTM B473
- ASTM B572, ASTM B573, ASTM B574, ASTM B581
- ASTM B691
- ASTM B805
Features
- Outstanding corrosion resistance, high temperature resistance and fatigue resistance, excellent roundness, white surface, wide application.
Applications
- Petrochemical, LNG, high-pressure boilers, nuclear power, marine industry, shipbuilding, energy conservation and environmental protection, aerospace and military industry, health care, etc.
Grades Available
MONEL
400
Si
C
Mn
Fe
Cu
Ni
K-500
Si
C
Mn
Fe
Al
Ti
Cu
Ni
INCONEL
600
Si
C
Mn
Cu
Fe
Cr
Ni
601
Si
C
Mn
Al
Cu
Fe
Cr
Ni
617
Si
C
Mn
Al
Ti
Cu
Co
Mo
Fe
Cr
Ni
625
Si
C
Al
Ti
Co
Ta
Mo
Fe
Cr
Ni
718
Si
C
Al
Ti
Co
Nb
Ta
Mo
Fe
Cr
Ni
X-750
Si
C
Mn
Al
Ti
Cu
Co
Fe
Cr
Ni
INCOLOY
800
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
800H
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
825
Si
Mn
Al
Ti
Cu
Mo
Fe
Cr
Ni
A-286
Si
C
Mn
Al
Ti
V
Mo
Fe
Cr
Ni
HASTELLOY
B-3
Mn
Al
Ti
Co
V
W
Fe
Mo
Cr
Ni
C-276
Mn
Co
V
W
Fe
Mo
Cr
Ni
INCONEL
602CA
Si
C
Al
Y
Fe
Cr
Ni
603XL
Si
C
Al
Ti
Mo
Cr
Ni
686
Mn
W
Mo
Fe
Cr
Ni
690
Si
Cu
Fe
Cr
Ni
693
Si
C
Mn
Al
Ti
Cu
Nb
Fe
Cr
Ni
706
Si
Al
Ti
Co
Nb
Fe
Cr
Ni
725
Si
Al
Ti
Nb
Mo
Fe
Cr
Ni
783
Si
Al
Ti
Cu
Co
Nb
Fe
Cr
Ni
INCOLOY
800HT
Si
C
Mn
Al
Ti
Cu
Fe
Cr
Ni
890
Si
C
Mn
Ti
Cu
Nb
Mo
Fe
Cr
Ni
926
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
MA956
C
Al
Ti
Fe
Cr
020
Si
C
Mn
Cu
Mo
Fe
Cr
Ni
028
Si
Mn
Cu
Mo
Fe
Cr
Ni
DS
Si
C
Mn
Cu
Co
Fe
Cr
Ni
330
Si
C
Mn
Cu
Fe
Cr
Ni
25-6HN
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
27-7MO
Si
Mn
N
Cu
Mo
Fe
Cr
Ni
MONEL
401
Si
C
Mn
Fe
Cu
Ni
404
C
Fe
Cu
Ni
R-405
Si
C
Mn
Fe
Cu
Ni
HASTELLOY
B
Si
Mn
Co
V
Fe
Mo
Cr
Ni
B-2
Mn
Co
Fe
Mo
Cr
Ni
C
Si
Mn
Co
V
W
Fe
Mo
Cr
Ni
C-4
Mn
Ti
Co
Fe
Mo
Cr
Ni
C-22
Co
V
W
Fe
Mo
Cr
Ni
C-22HS
Al
Cu
Co
W
Fe
Mo
Cr
Ni
C-2000
Al
Cu
Co
Fe
Mo
Cr
Ni
G-3
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-30
Si
Mn
Cu
Co
W
Fe
Mo
Cr
Ni
G-35
Si
Al
Co
V
W
Fe
Mo
Cr
Ni
N
Si
C
Mn
V
W
Fe
Mo
Cr
Ni
S
Si
Al
Co
W
Fe
Mo
Cr
Ni
W
Si
C
Mn
Co
V
W
Fe
Mo
Cr
Ni
X
Si
C
Mn
Al
Co
Nb
W
Fe
Mo
Cr
Ni
Manufacturing Process of Nickel Alloy Wire Rod
Steel Making
Ingot Casting
Ingot
Heating
Hot Rolling
Hot Rolled Wire Rod
Annealing
Pickling
Cold Drawing
Hydrogen Annealing
Cold Drawing
Polishing
Polished Wire Rod
Inspection
Analytic
Marking
Packing & Shipping
Drawing & Formula
Formula: m = D (mm) × D (mm) × L (m) × ρ (g/cm³) × π ÷ 4000
D = Diameter, L = Length, ρ = Density, π = 3.1415926...
Technical Sheet
| Cold Drawn | |||
|---|---|---|---|
| Specified Diameter, in. (mm) | Diameter Tolerance, in. (mm) | ||
| Over | Under | ||
| 0.5000(12.70) | 0.002(0.05) | 0.002(0.05) | |
| Under 0.5000(12.70) to 0.3125(7.94), incl | 0.0015(0.04) | 0.0015(0.04) | |
| Under 0.3125(7.94) to 0.0440(1.12), incl | 0.001(0.03) | 0.001(0.03) | |
| Under 0.0440(1.12) to 0.0330(0.84), incl | 0.0008(0.02) | 0.0008(0.02) | |
| Hot Rolled | |||
| Permissible Variations from Specified Size, in. (mm) | Out-of-Round or Out-of-Square, in. (mm) | ||
| Over | Under | ||
| Over 5/16(7.94) to 7/16(11.11), incl | 0.006(0.15) | 0.006(0.15) | 0.009(0.23) |
| Over 7/16(11.11) to 5/8(15.88), incl | 0.007(0.18) | 0.007(0.18) | 0.010(0.25) |
| Over 5/8(15.88) to 7/8(22.22), incl | 0.008(0.20) | 0.008(0.20) | 0.012(0.30) |
| Over 7/8(22.22) to 1(25.40), incl | 0.009(0.23) | 0.009(0.23) | 0.013(0.33) |
| Over 1(25.40) to 9/8(28.58), incl | 0.010(0.25) | 0.010(0.25) | 0.015(0.38) |
| Over 9/8(28.58) to 5/4(31.75), incl | 0.011(0.28) | 0.011(0.28) | 0.016(0.41) |
| Over 5/4(31.75) to 11/8(34.92), incl | 0.012(0.30) | 0.012(0.30) | 0.018(0.46) |
| Over 11/8(34.92) to 3/2(38.10), incl | 0.014(0.36) | 0.014(0.36) | 0.021(0.53) |
| Over 3/2(38.10) to 2(50.80), incl | 1/64(0.40) | 1/64(0.40) | 0.023(0.58) |
| Over 2(50.80) to 5/2(63.50), incl | 1/32(0.79) | 0 | 0.023(0.58) |
| Over 5/2(63.50) to 7/2(88.90), incl | 3/64(1.19) | 0 | 0.035(0.89) |
| Over 7/2(88.90) to 9/2(114.30), incl | 1/16(1.59) | 0 | 0.046(1.17) |
| Delivery State Choice | Surface Condition |
|---|---|
| Hot Rolled | Pickled |
| Polished | |
| Cold Drawn | Bright |
| Polished | |
| Note: 1. If you require different deliver state than the above listed, kindly confirm with us. 2. In case of any enquiry or order, please kindly let us know any extra requirement not indicated here. |
|
Package
Plastic Bag
Wood Reel
Wooden Case
At AEETHER, our nickel alloy wire rods are packed tightly as per international standard to prevent any possible damage. By default we will use plastic bags to pack the wire rods. However, for those wire rods that are susceptible to dirt pollution, scraping, stress or man-handling damages, we suggest wooden case or wood reel for protection. Please be kindly noted that wooden case can incur extra cost by its own, and at times can increase the freight, which is especially remarkable for air transportation. For enhanced user experience, we will pack as per your diverged requirements.
Logistics
By Sea
By Air
Sea transportation is the most popular for most orders, hence regarded as the default transportation mode. Accordingly, quotation is thus made as per FOB, CFR, CIF etc.. For urgent demand, we can also offer as per air transportation.
FAQ
Our packaging can be waterproof thick woven plastic bags, wood reels and wooden cases.A
South America, North America, Asia, Middle East, Europe, Africa etc.A
Usually, it takes three weeks to order nickel alloy wire rod to complete production, but the delivery time may also be affected by other factors, such as special grades, special sizes, large quantities of the product itself, or force majeure.A
• ASTM B160, ASTM B164, ASTM B166
• ASTM B335
• ASTM B408, ASTM B425, ASTM B446, ASTM B472, ASTM B473
• ASTM B572, ASTM B573, ASTM B574, ASTM B581
• ASTM B691
• ASTM B805A
Usually, our MOQ is 100kg. If you are not sure about your situation, please contact us.A
