Monel Alloy 400 (UNS N04400 / W.Nr. 2.4360)Round Bar & Rod
- AEETHER
- Monel Alloy 400 Bars
- Round Bar & Rod
Get a Free Quote NOW
Send Inquiry and Get Our Latest Full Set Data Sheet
Quotation with
Valuable Data Sheet
Ship with MTC Acc.
to EN 10204/3.1
Quick Responce
within 24 Hours
Complete
Solution Treatment
High Precision
Process Available
Excellent
Corrosion Resistance

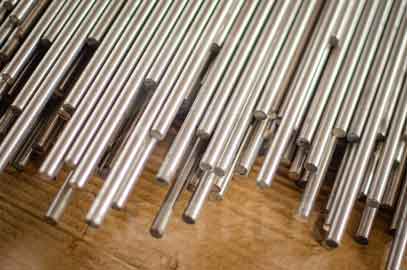

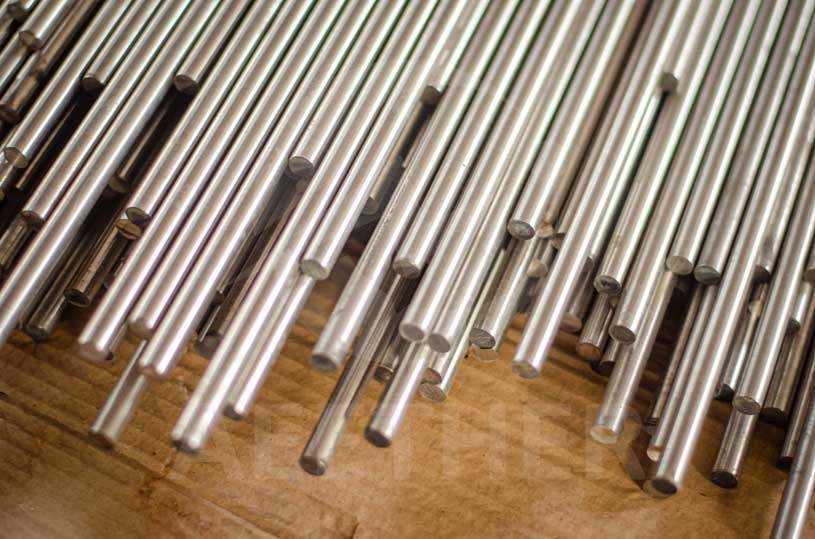

Monel 400 Round Bar & Rod Supplier
As a professional Monel alloy supplier, we produce Monel 400 round bar & rod with high cost performance.
Monel 400 is a solid solution strengthened alloy with excellent corrosion resistance. This alloy has better corrosion resistance than most alloys at room temperature, especially in flowing seawater. Therefore, Monel 400 is often used for parts in marine applications.
We manufacture Monel 400 round bar & rod according to ASTM B164. Regarding surfaces, we default to delivery in bright state. For the Monel 400 round bar, if you can accept a black bar, we can offer you the best price with a shorter lead time. For the Monel 400 rod, we can grind the material according to your requirements for higher precision.
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Monel 400 Round Bar & Rod
*As a professional manufacturer, our default standard for Monel 400 round bar & rod is ASTM B164. We can also produce according to other standards as per you required.
Surface to be Customized
Chemical Composition of Monel 400
*Chemical Composition According to ASTM B164
Suppliers should conduct chemical analysis on Monel 400 pipe & tube strictly in accordance with ASTM E76 standard and issue corresponding material certificate.
Data Sheet
Physical Properties
| Density | g/cm3 | 8.80 | |
|---|---|---|---|
| lb/in.3 | 0.318 | ||
| Melting Range | °F | 2370 - 2460 | |
| °C | 1300 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Cold-worked (as worked) / under 12.7mm | 760 | 585 | 8 | ... | ... |
| Cold-worked (stress-relieved) / under 12.7mm | 580 | 345 | 10 | ... | ... |
| Cold-worked (stress-relieved) / 12.7mm to 88.9mm, incl | 600 | 415 | 20 | ... | ... |
| Cold-worked (stress-relieved) / 88.9mm to 101.6mm, incl | 580 | 380 | 20 | ... | ... |
| Hot-worked (as worked or stress-relieved) / up to 305mm, incl | 552 | 276 | 30 | ... | ... |
| Hot-worked (as worked or stress-relieved) / over 305mm to 356mm, incl | 517 | 276 | 30 | ... | ... |
| Hot-worked (annealed) or cold-worked (annealed) / all sizes | 480 | 170 | 35 | ... | ... |
*Mechanical Properties According to ASTM B164
We anneal the Monel 400 round bar & rod by default to completely eliminate the brittleness of the material. Please let us know if you have special mechanical property requirements for the material. We can simply stress relieve the material to retain some of the work hardening. We can also deliver directly in a cold drawn state, which preserves the high strength of the material to the greatest extent possible.
Monel 400 Applications
Other Informations
Package
Plastic Bag
Wooden Case
Logistics
By Sea
By Air
Price Term
