Inconel Alloy 718 (UNS N07718 / W.Nr. 2.4668)Round Bar & Rod
- AEETHER
- Inconel Alloy 718 Bars
- Round Bar & Rod
Get a Free Quote NOW
Send Inquiry and Get Our Latest Full Set Data Sheet
Quotation with
Valuable Data Sheet
Ship with MTC Acc.
to EN 10204/3.1
Quick Responce
within 24 Hours
Complete
Aging Treatment
High Precision
Process Available
Excellent High
Temperature Strength

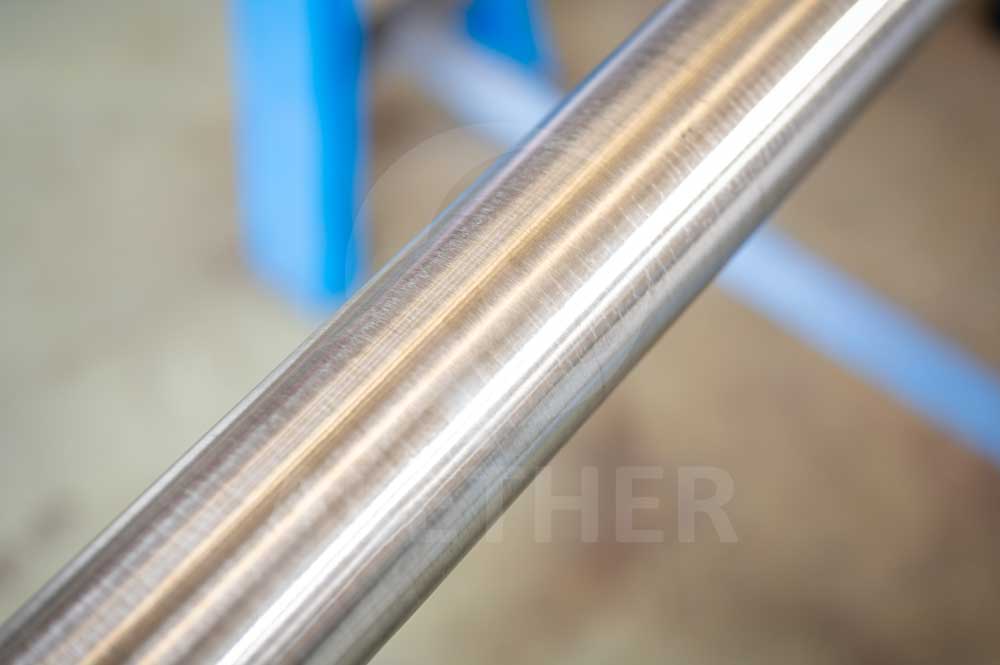

Inconel 718 Round Bar & Rod Supplier
As a professional nickel alloy supplier, we produce high quality Inconel 718 (UNS N07718) round bar & rod.
Inconel 718 is a precipitation strengthened alloy. After aging treatment, Inconel 718 round bar & rod has very high strength. It also has excellent high temperature corrosion resistance and is often used in engine internal parts.
The Inconel 718 round bar has a diameter of over 50mm and is processed by hot rolling. The diameter of Inconel 718 rod is less than 50mm, and the processing method is hot rolling + cold drawing. Depending on your needs, we can grind the material after aging for better surface and dimensional accuracy. We can also customize the tensile strength, heat treatment, and chemical composition requirements of the material for you, which sets us apart from many suppliers.
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Inconel 718 Round Bar & Rod
*As a professional manufacturer, our default standard for Inconel 718 round bar & rod is ASTM B637. We can also produce according to other standards as per you required.
Surface to be Customized
Chemical Composition of Inconel 718
*Chemical Composition According to ASTM B637

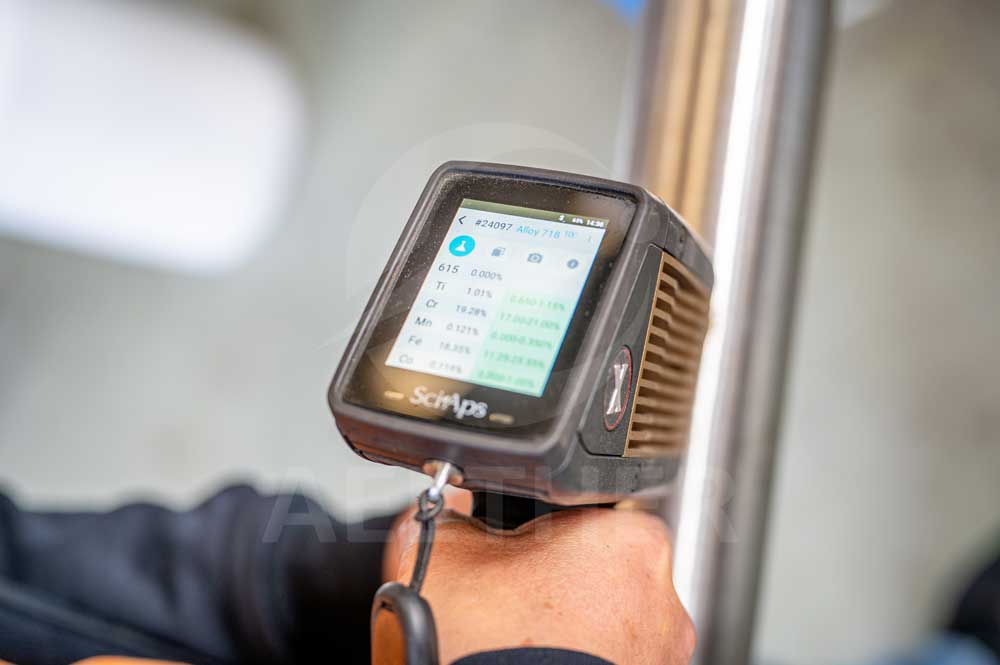

Suppliers shall perform chemical analysis of Inconel 718 material in accordance with ASTM B880 to ensure that the chemical composition of the product meets the requirements.
Data Sheet
Physical Properties
| Density | g/cm3 | 8.19 | |
|---|---|---|---|
| lb/in.3 | 0.296 | ||
| Melting Range | °F | 2300 - 2437 | |
| °C | 1260 - 1336 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | HB | |
| N07718 solution + precipitation harden | 1275 | 1034 | 12 | 15 | 331 min |
*Mechanical Properties According to ASTM B637
In ASTM B637, Inconel 718 round bar & rod is heat treated as follows:
Solution Treatment: 1700 to 1850°F (924 to 1010°C), hold 1/2 h min, cool at rate equivalent to air cool or faster.
Aging Treatment: 1325 ± 25°F (718 ± 14°C), hold at temperature for 8 h, furnace cool to 1150 ± 25°F (621 ± 14°C), hold until total precipitation heat treatment time has reached 18 h, air cool.
Please confirm this point with the manufacturer to ensure that the material achieves acceptable mechanical properties.
Inconel 718 Applications
Other Informations
Package
Plastic Bag
Wooden Case
Logistics
By Sea
By Air
Price Term
Get a Free Quote NOW
