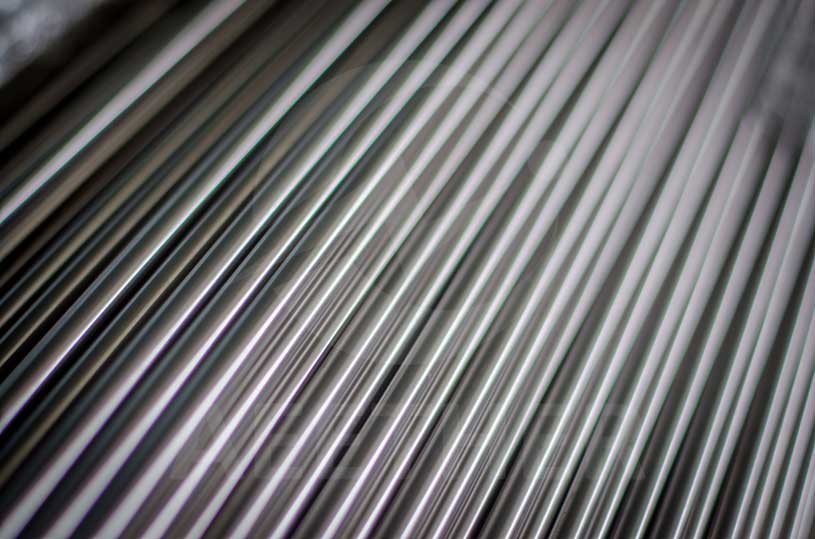

Inconel 625 Round Bar & Rod Supplier
As a professional nickel alloy supplier, we manufacture high quality Inconel 625 (UNS N06625 / W.Nr. 2.4856) round bar & rod.
Inconel 625 has very good overall performance. Both corrosion resistance, high temperature performance and strength are very satisfactory. Therefore, it is one of the most commonly used nickel alloy materials. At the same time it is also our popular product.
Our Inconel 625 round bars & rods are produced strictly to the default ASTM B446 standard. Two grades of Inconel 625 round bar & rod are specified in the standard. Grade I is the normal annealed condition. Grade II (solution annealed condition) is our recommendation when you need the alloy with better creep strength. The grade of Inconel 625 round bar & rod should be requested from the supplier at the time of purchase. We can customize the heat treatment method according to your requirements.
Customized Dimensions
h9 / h11 Tolerance Available
*Customized size please confirm with us
Standards for Inconel 625 Round Bar & Rod
*As a professional manufacturer, our default standard for Inconel 625 round bar & rod is ASTM B446. We can also produce according to other standards as per you required.
Surface to be Customized
Chemical Composition of Inconel 625
*Chemical Composition According to ASTM B446

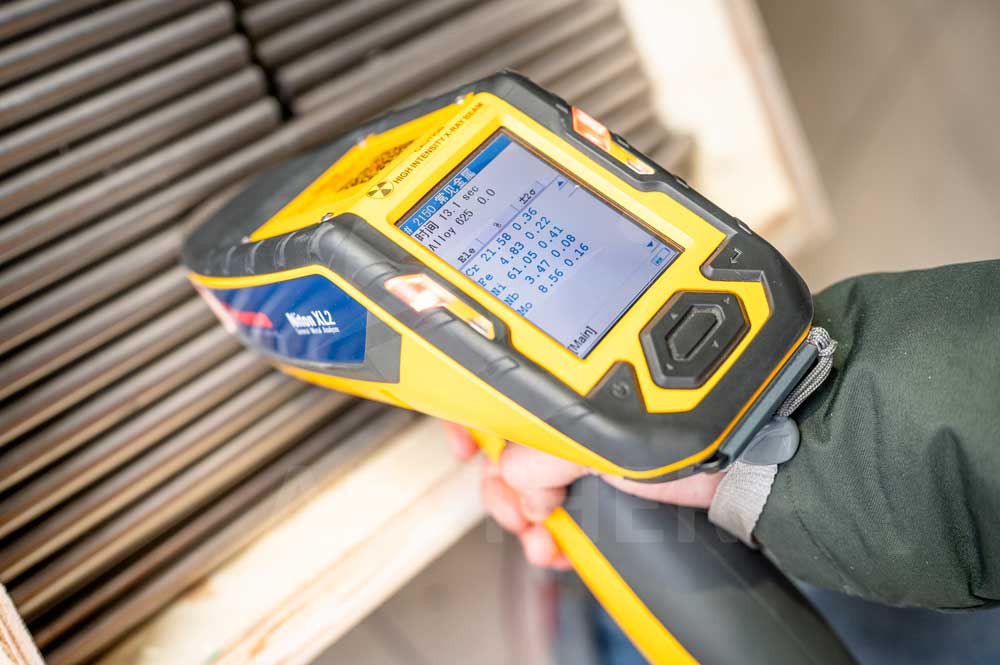

Suppliers shall perform compositional analysis of Inconel 625 round bars in accordance with ASTM B880.
Data Sheet
Physical Properties
| Density | g/cm3 | 8.44 | |
|---|---|---|---|
| lb/in.3 | 0.305 | ||
| Melting Range | °F | 2350 - 2460 | |
| °C | 1290 - 1350 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell, max | |
| Annealed / Up to 102mm, incl | 827 | 414 | 30 | ... | ... |
| Annealed / Over 102mm to 254mm, incl | 758 | 345 | 25 | ... | ... |
| Solution Annealed / All sizes | 690 | 276 | 30 | ... | ... |
*Mechanical Properties According to ASTM B446
If the standard specifies other performance parameters such as dimensional tolerance, straightness, etc., please confirm with the supplier before placing the order.
Inconel 625 Applications
