Incoloy 800 Strip Supplier
As a trustworthy Incoloy alloy supplier, we produce Incoloy 800 strips in different sizes.
Incoloy 800 (UNS N08800) is a cost-effective solid solution strengthened superalloy. It has good high temperature corrosion resistance. Compared to Inconel series alloys, its price is lower. Incoloy 800 remains one of the most widely used alloys today.
Incoloy 800 strips can be produced by slitting the coils. It can also be directly produced by cold rolling. For Incoloy 800 strips with a width of less than 200mm, we will use the second method. Because this not only allows you to control the hardness of the strip according to your requirements, but also keeps the cost to a minimum. Typical coil stock suppliers cannot do this.
Customized Dimensions
Tolerance according to ASTM B906
*Customized size please confirm with us
Standards for Incoloy 800 Strip
*As a professional manufacturer, our default standard for Incoloy 800 strip is ASTM B409. We can also produce according to other standards as per you required.
Edge to be Customized
Chemical Composition of Incoloy 800
*Chemical Composition According to ASTM B409
Compared with ordinary stainless steel, Incoloy 800 adds more nickel and chromium, which greatly improves the corrosion resistance and high temperature resistance of the alloy.
Data Sheet
Physical Properties
| Density | g/cm3 | 7.94 | |
|---|---|---|---|
| lb/in.3 | 0.287 | ||
| Melting Range | °F | 2475 - 2525 | |
| °C | 1357 - 1385 | ||
Mechanical Properties
| Condition & Size | Tensile Strength | Yield Strength (0.2% Offset) | Elongation | Reduction of Area | Hardness |
|---|---|---|---|---|---|
| MPa, min | MPa, min | %, min | %, min | Rockwell | |
| Annealed | 520 | 205 | 30 | ... | ... |
*Mechanical Properties According to ASTM B409
Our Incoloy 800 strips are delivered solution treated by default. If you need the strip to have a higher hardness, you can confirm with the manufacturer. We can directly supply Incoloy 800 strip in cold rolled condition.
Other Informations

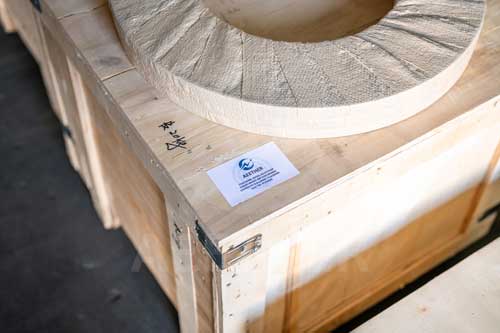

Package
